Voyado adapter

Our integration with Voyado allows Walley to check if a user is a member of the loyalty program of the merchant. If the customer is not already a member of the loyalty program, Walley will ask the customer if they would like to enroll as part of the checkout journey. If so, Walley will automatically enroll the customer to the membership program after completing the purchase, all without leaving the checkout experience.

When the customer identifies in Walley Checkout, a request to Voyado will be made to check if the customer is already a member based on national registration number, email address or mobile phone number. If the customer is not already a member Walley Checkout will prompt to apply for membership.

If the customer changes the toggle to apply for membership, a walleyCheckoutCrmUpdated JS event will be sent. When this event is received you have to acquire checkout information to know the status of the membership.

If the customer chose to apply for membership Walley will automatically register the customer with Voyado:

{
  "firstName": "First name",
  "lastName": "Last name",
  "street": "Address 1",
  "zipCode": "12345",
  "city": "City",
  "email": "test@walleypay.se",
  "mobilePhone": "+46701234567",
  "countryCode": "SE",
  "socialSecurityNumber": "510731-2323",
  "preferences": {
    "acceptsEmail": true,
    "acceptsPostal": false,
    "acceptsSms": false
  }
}

Note that Walley Checkout will also provide Voyado with the following properties:

Property	Required	Explanation
Source	Yes	Always set to the string "Walley".
StoreExternalId	No	Set to a value of your chosing to indicate which store in Voyado the customer registered in. Note that this store must be setup in Voyado and can be configured in our settings or as the externalStoreId parameter when initializing the checkout
Consent	No	If a customer chooses to be a member then we can create a consent and send them to Voyado. Contact Walley Merchant Services to set this up.

Acquiring loyalty membership information

When acquiring checkout information after a customer is identified, the data.customer.loyaltyMembership object contains information about the outcome of the membership registration.

Property	Type	Returned	Description
provider	string	Yes	Always voyado for a the Voyado adapter.
success	bool	Yes	false if the registration of membership failed.
isMember	string	Maybe	Indicates membership, possible values are: yes, no, new.
id	string	Maybe	The Voyado contactId to identify the membership.
memberNumber	string	Maybe	The member number of the customer.

There will be four possible outcomes:

1. The customer is already a member, so no registration was performed.
2. The customer chose to apply for membership, and a membership was registered successfully.
3. The customer chose not to apply for membership.
4. The customer chose to apply for membership, but the registration failed due to technical reasons.

Important

If the membership failed to register due to technical reasons, create the membership manually so the customer does not lose their points, bonus levels, or similar. To see why the registration failed, check the developer logs in the Merchant hub.

1. Customer is already a member

{
  "data": {
    "customer": {
      "loyaltyMembership": {
        "provider" : "voyado",
        "success": true,
        "isMember":"yes",
        "id": "9b43c86e-227b-4149-b0ee-de7f4846be26",
        "memberNumber": "123456789"
      }
    }
  }
}

2. Customer was registered successfully

{
  "data": {
    "customer": {
      "loyaltyMembership": {
        "provider" : "voyado",
        "success": true,
        "isMember":"new",
        "id": "9b43c86e-227b-4149-b0ee-de7f4846be26",
        "memberNumber": "123456789"
      }
    }
  }
}

3. Customer chose not to apply for membership

{
  "data": {
    "customer": {
      "loyaltyMembership": {
        "provider" : "voyado",
        "success": true,
        "isMember":"no"
      }
    }
  }
}

4. Membership failed to register

{
  "data": {
    "customer": {
      "loyaltyMembership": {
        "provider" : "voyado",
        "success": false
      }
    }
  }
}

Bonus vouchers

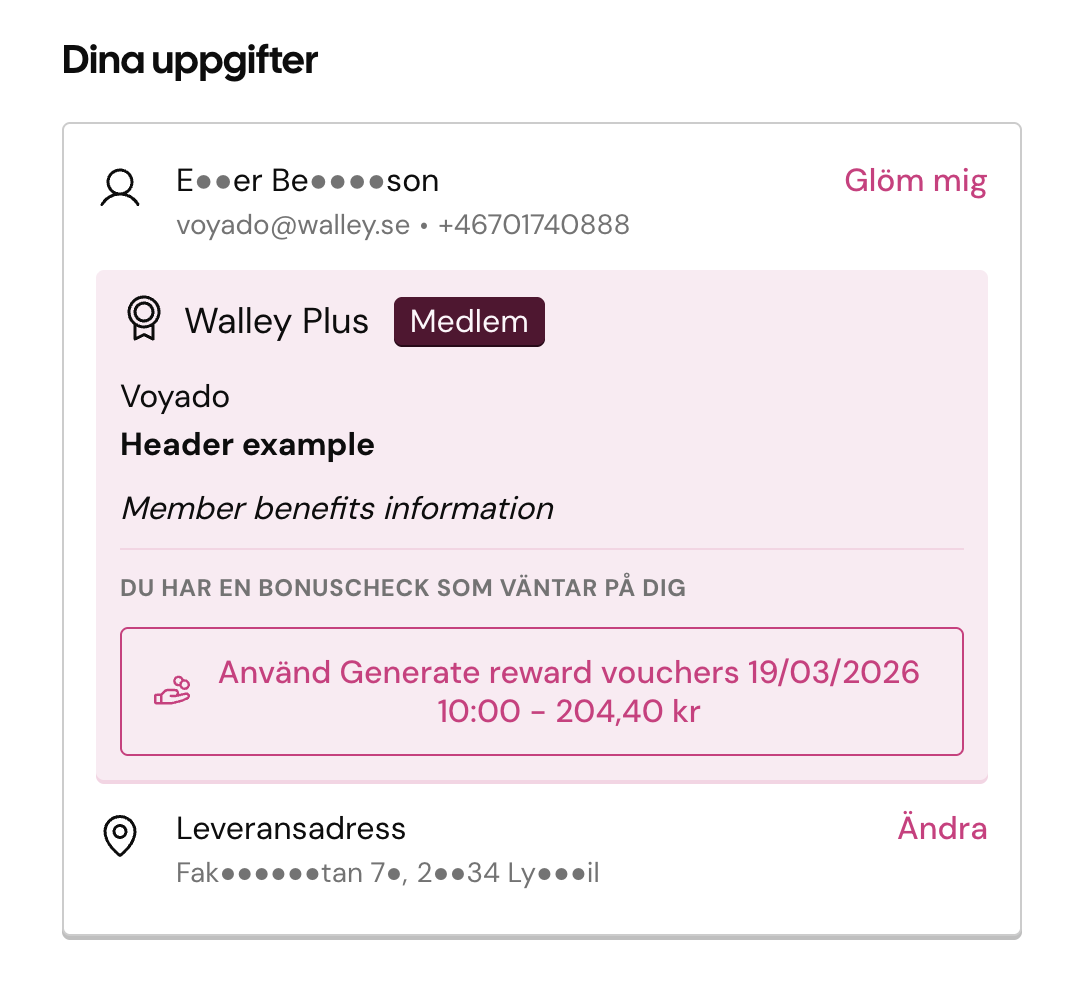

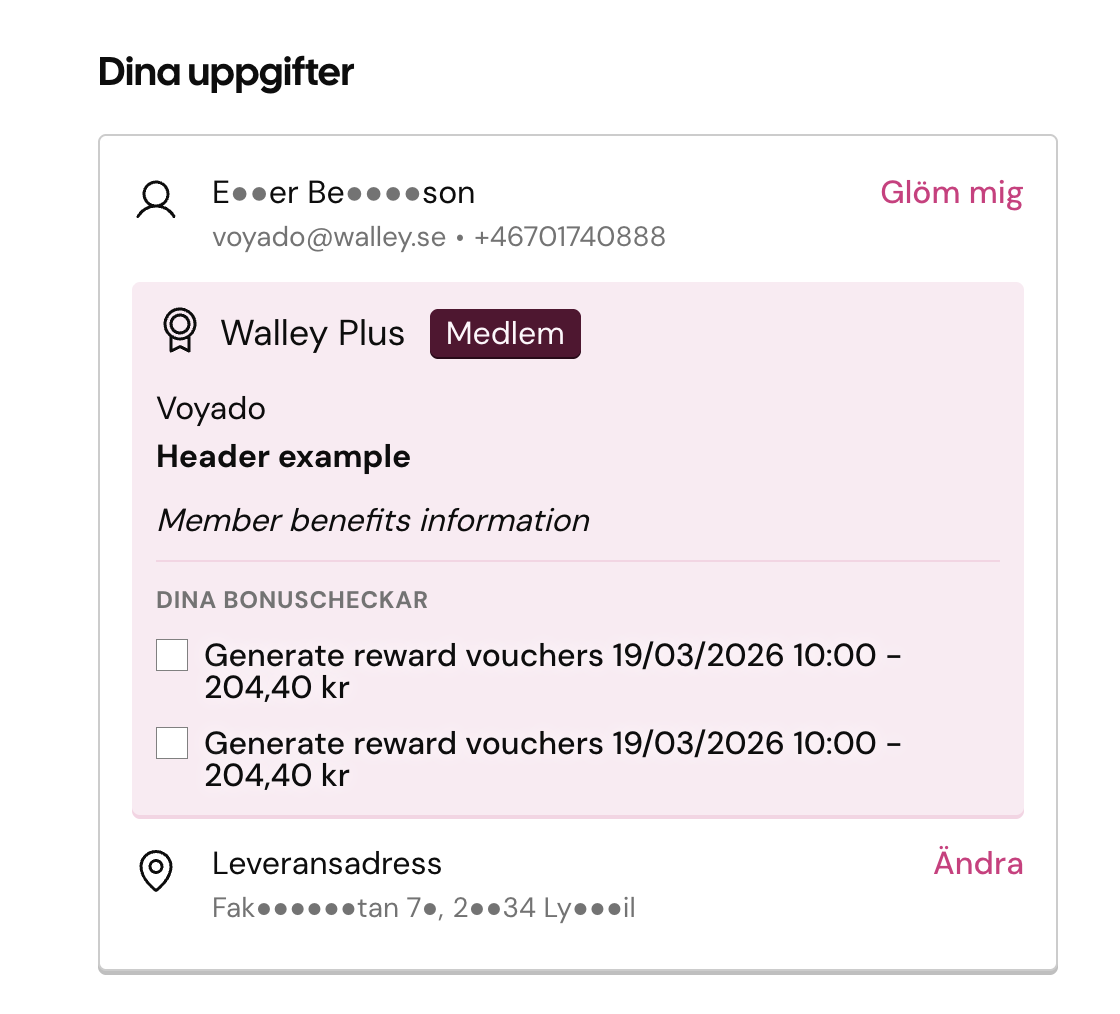

Turn loyalty points into sales. With bonus vouchers, your Voyado members see the rewards they have earned right inside Walley Checkout — and can apply them to their purchase with a single tap. No codes to remember, no copy-pasting, no abandoned carts because a customer could not find their voucher in their inbox.

Available vouchers show up automatically once the customer is identified. The order total updates the moment a voucher is activated, and Walley handles the redemption with Voyado behind the scenes. The result: a shorter path to checkout, higher conversion on loyalty traffic, and a stronger reason for customers to come back.

To enable bonus vouchers for your store, contact Walley Merchant Services. Make sure bonus vouchers are also activated in your Voyado setup — Voyado support can help you with that side of the configuration.

note

Voyado must be configured for the currency used in the checkout session. Vouchers issued in a currency that does not match the checkout session currency will not be returned and therefore not shown to the customer.

Vouchers in the merchant checkout information

When a purchase is completed with one or more bonus vouchers applied, the merchant checkout information response includes an appliedVouchers array under data. Each entry describes a voucher that was successfully redeemed against Voyado as part of the purchase, so you can reconcile the discount with your order system, show it on receipts, or report on loyalty-driven sales.

Property	Type	Description
voucherId	string	Unique identifier for the voucher in Voyado.
code	string	The voucher code that was redeemed.
description	string	Human-readable description of the voucher (e.g. campaign name).
discountAmount	decimal	The discount value applied, in the checkout currency.

The voucher discount is also reflected as a negative line item on the order under data.order.items, using the voucher code as the article id and the description as the row description, so the order total already accounts for the bonus.

{
  "data": {
    "appliedVouchers": [
      {
        "voucherId": "voucher-123",
        "code": "SUMMER2026",
        "description": "Summer campaign voucher",
        "discountAmount": 50.00
      }
    ]
  }
}

If no voucher adapter is configured for the store, or if the customer did not activate any vouchers, the appliedVouchers field is omitted from the response — existing integrations are unaffected.

Configuration

The loyalty adapter can be configured to personalize the checkout experience in line with the merchant’s brand, and enable optional features.

Optional features

Membership levels:

To enable this feature, follow these steps:

1. Contact Walley Merchant Services for help setting up the Voyado integration.
2. Make sure the corresponding setting is also enabled in your Voyado integration. (Contact Voyado for assistance.)
